What isSMT Assembly Capabilities?

After a large piece of copper is corroded, part of the copper line is left behind. After covering the PI, the welding pad is left and then gold-plated to form a complete line.It is an excellent line for high vibration and harsh environment.Its stability and reliability are widely recognized by the market.It has been used in high-end products.

Read More more

Read More more

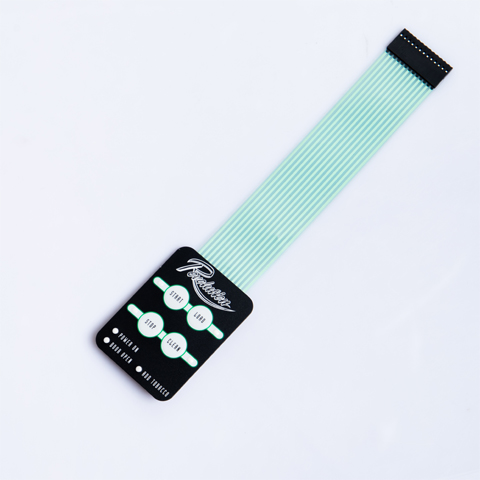

What is the Silver Flex Circuit?

In Polyester or Mylar printing conductive ink, carbon oil and UV ink form a kind of film circuit of a complete circuit. It is one of the most common core components of Membrane Switch. Its economic benefits have always been recognized.

Read More more

Circuit Of Membrane Switch-three-3

Read More more

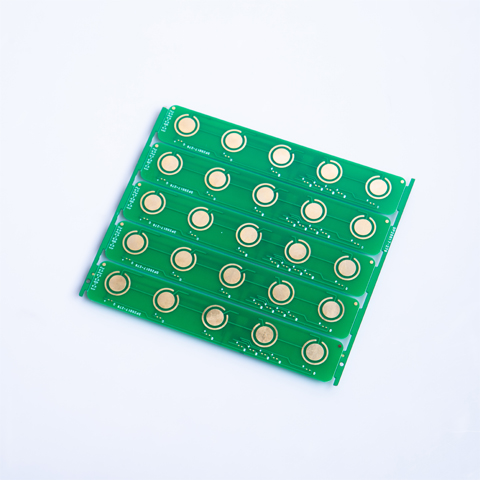

What is Printing Circuit Board?

PCBs can be single-sided (one copper layer), double-sided (two copper layers on both sides of one substrate layer), or multi-layer (outer and inner layers of copper, alternating with layers of substrate). Multi-layer PCBs allow for much higher component density, because circuit traces on the inner layers would otherwise take up surface space between components.

Read More more

Circuit Of Membrane Switch-three-2
Consolidated form of the three routes:
PN: Siliver Flex Circuit Flex Copper Circuit Printing Circuit Board
Material Polyester or Mylar Copper and Polymide FR4,CEM-1 G-10 etc
Printing vs. Etching Conductive silver ink and Carbon traces are screen printed onto the Polyester or Mylar. After a large piece of copper is corroded, and some copper lines are left, the PI is covered to leave the pads and then gold-plated to form a complete line. After a large piece of copper is corroded, and some copper lines are left, the PI is covered to leave the pads and then gold-plated to form a complete line.
Stability Normal Excellent Excellent
Thickness 0.1-0.175mm 0.125-0.25mm 0.4-6.4mm
Price Moderate High High
Pitch(mm) 0.5,(Not a good choice ),1.0,1.27,2.54 0.5,1.0,1.27,2.54 -
Conductivity Resistivity about 50 mOhms/sq
1mm x 80 mm trace = 4 Ohms
0.5mm x 80mm trace = 8 Ohms		 Lower Lower
Weight Lightest Weight Heaviest
Can weld various components Only LEDs OK OK

Advantages od Cooperation

Reasons To Persuade You

icon_open

icon_close

  • No organization of maintenance operations

  • No documentation of maintenance

  • Optimal service - 24 hours problem solving

  • Manufacturer-independent maintenanceeight levels

  • Products with high quality and competitive prices

  • Professional design

  • Good after-sales service

customer

customer

Contact

LT PCBA

Professional Manufacturer

+86-0755-23005997 +1 626 597 6633 sales@ltpcba.com

Information

icon_infor
Defense
icon_infor
PCB prototyping

Advantages of Silver Flex Membrane Switch

  1. Economical and affordable. Compared with the other two lines, the price is the most prominent advantage of Silver Flex Circuit.
  2. Very soft. It can be bent appropriately, and the thickness is thinner, saving a lot of design space.
  3. The production cycle is shorter, and the delivery time is 7-10 days shorter than Flex Copper Membrane Switch and PCB Membrane Switch.
Smt Assembly Manufacturer

Advantages of Flex Copper SMT Assembly Capabilities

  1. Various types of components can be mounted.
  2. Very soft. The function of bending the lead wire for 10,000 times still exists, and the thinner thickness saves a lot of design space.
  3. The volume is smaller. In the same area, Flex Copper Circuit can adopt double panels and multiple panels to form more traces, thereby reducing the area and volume of electronic products. The product is more portable.
  4. It can be used in a high-pressure and humid environment without causing silver migration.
  5. Low resistance, suitable for sensitive electronic products.
  6. Suitable for environments with excessive vibration, extreme heat or extreme cold temperature fluctuations. The reason is that the welding strength of Flex Copper Circuit components is two to three times that of Silver Flex circuit conductive adhesive welding.

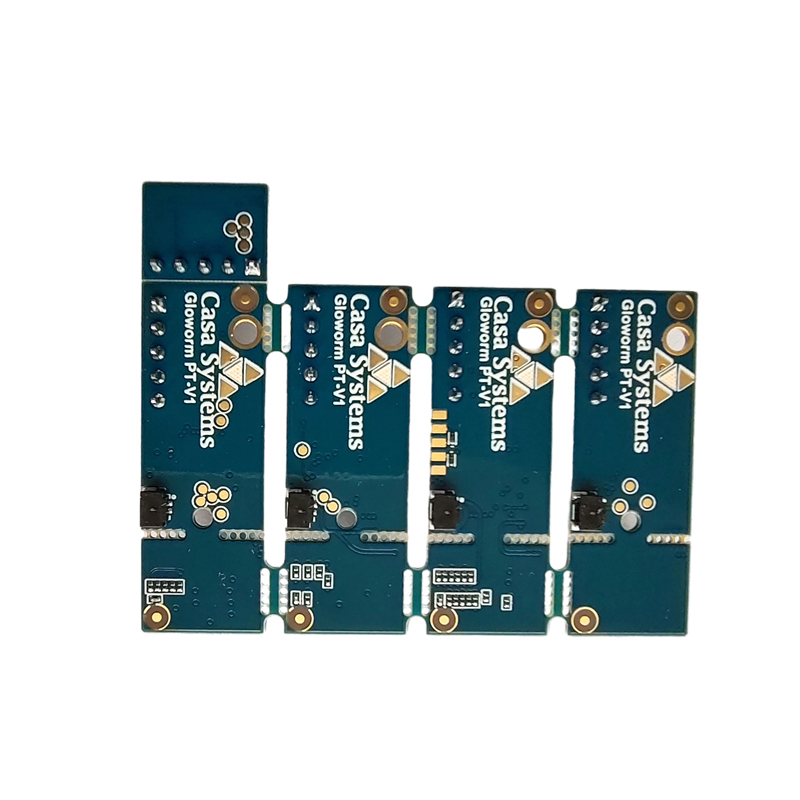

Automated Optical Inspection AOI wireless charger pcb assembly

Advantages of PCB Membrane Switch:

  1. Various types of components can be mounted.
  2. Hard board material. Can be connected with FFC or directly welded to the connector
  3. Compared with the same area of Silver Flex Circuit, more traces can be laid out. PCB can adopt double-sided boards and multiple-sided boards to form more traces, thereby reducing the area and volume of electronic products. The product is more portable.
  4. It can be used in a high-pressure and humid environment without causing silver migration.
  5. Suitable for environments with excessive vibration, extreme heat or extreme cold temperature fluctuations. The reason is that the soldering strength of PCB components is two to three times that of Silver Flex circuit conductive adhesive soldering.
  6. Low resistance, suitable for sensitive electronic products.
smt pcb assembly manufacturer
Prototype Pcb Assembly Manufacturer

What are the common design options for the three?

- Quality products from LT PCBA

Choose Non-Tactile or Tactile design.

Choose Backlight Solution.

EMI/RFI shielding.

It can be superimposed by digital printing, screen printing or a combination of both.

Rigid backers such as aluminum and FR4.
